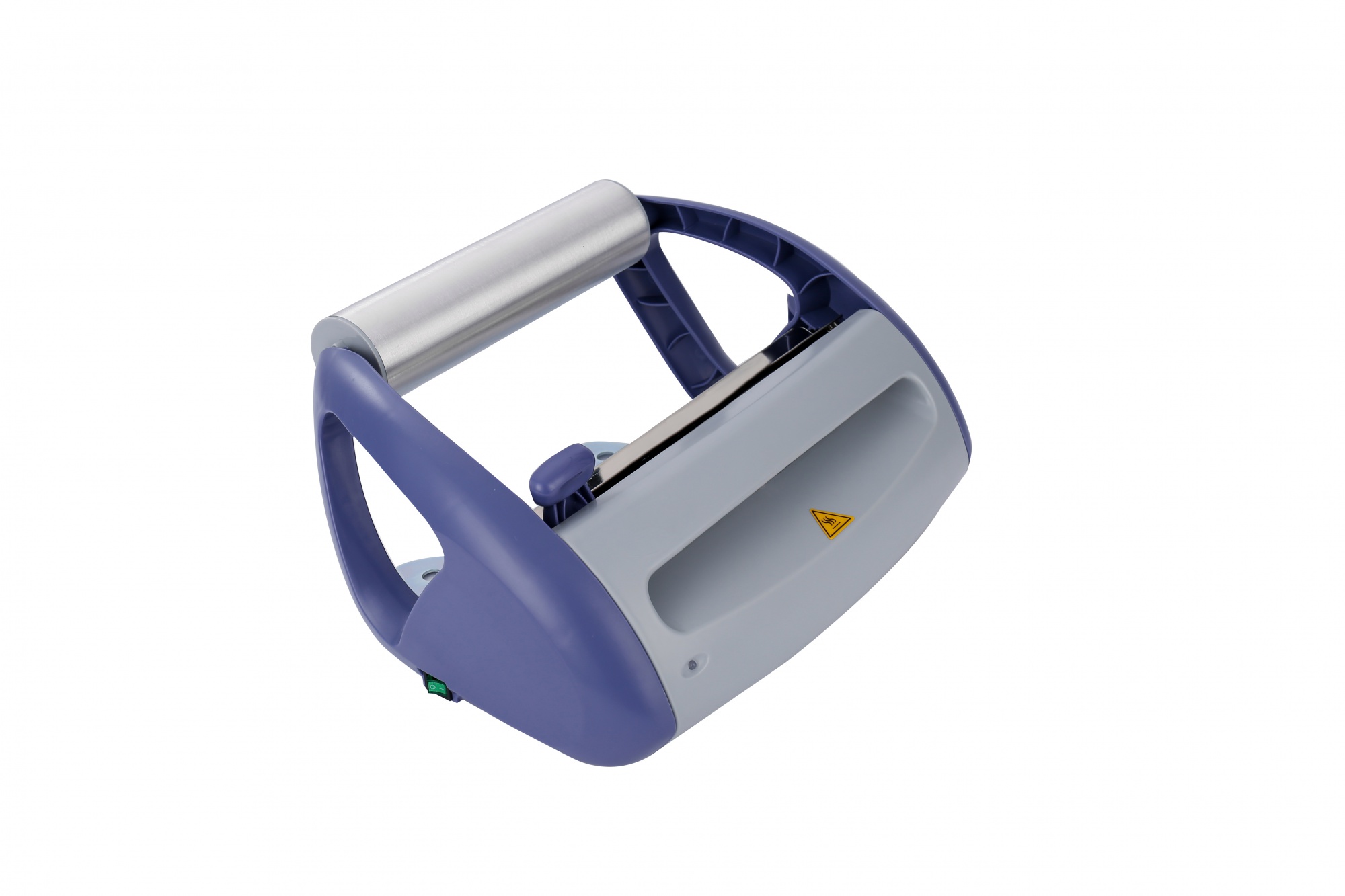

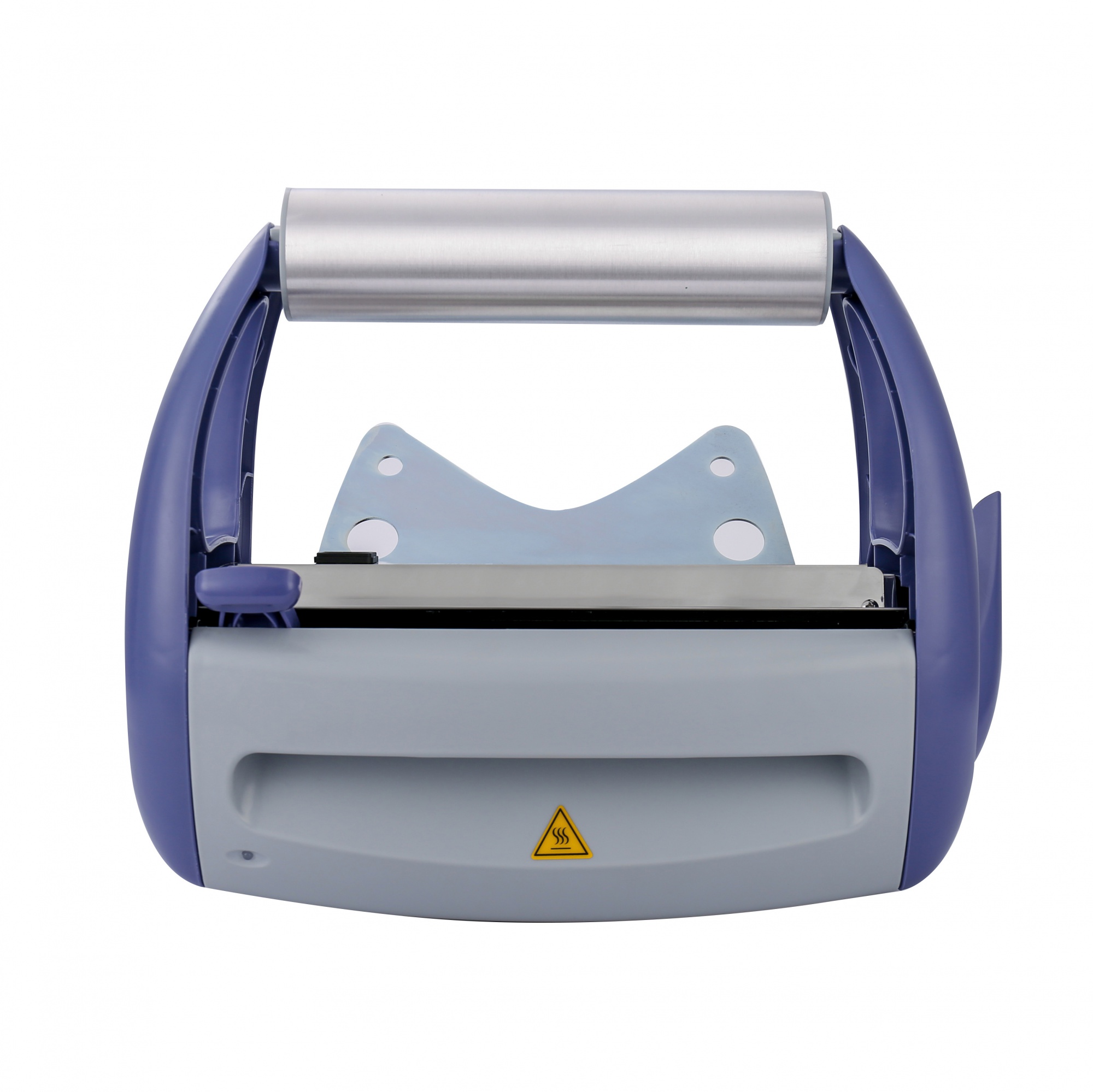

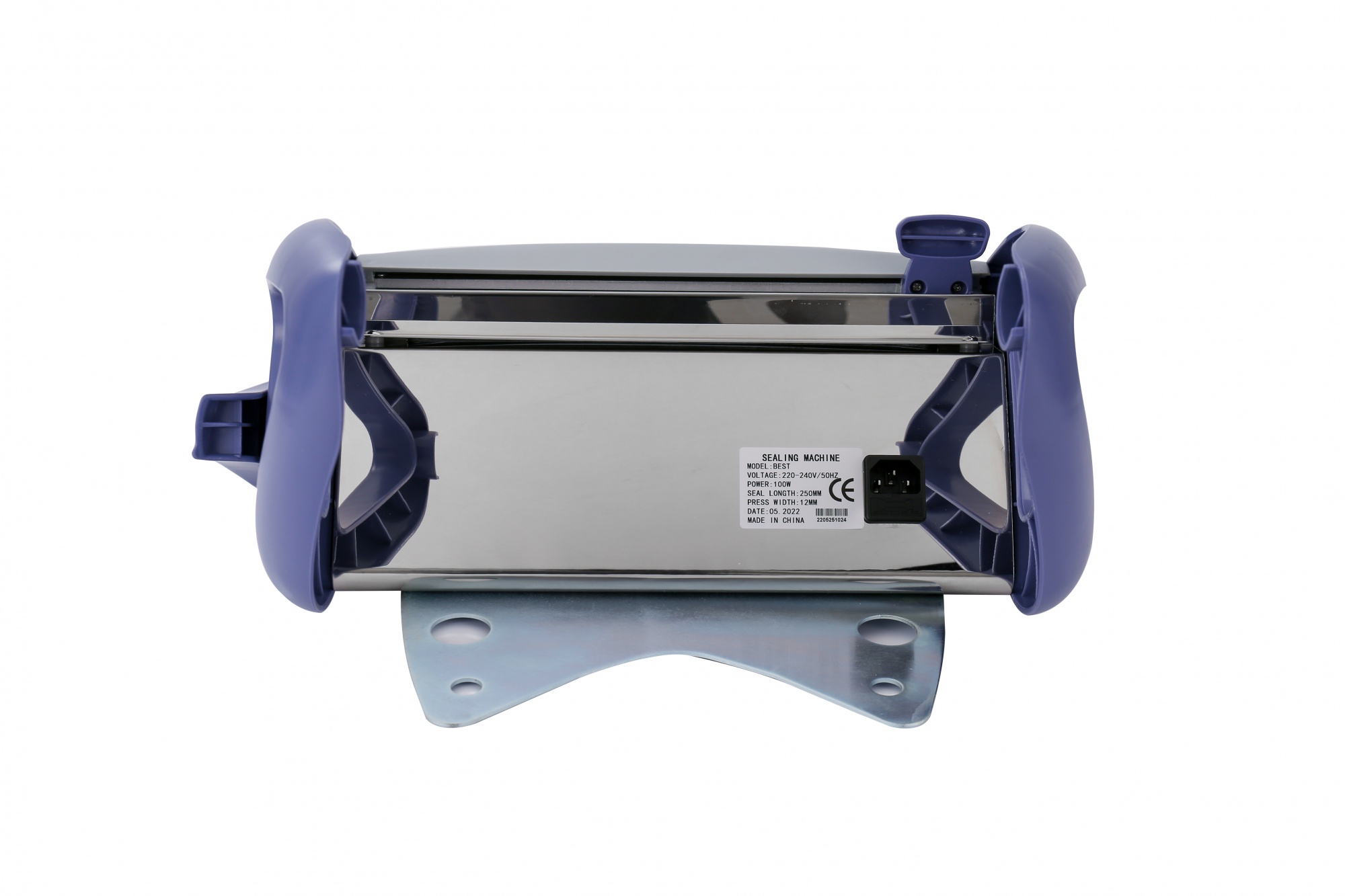

TY039

Wall-mounted&desktop dental sealing machine,

PTC heater,enery saving 70%

Press width=12mm

Beep reminder,timeout automatically alert

Voltage: 110V/220V AC Frequency: 50/60Hz

Power: 100W N.W. 5.5kg G.W. 6kg

Size: 470×342×245mm（L×W×H）

Seal longth: 250mm

Technical Characteristics

USE TEMPERATURE DIMENSIONS: 17°C - 27°C INSULATION CLASS: 1

(WX H x D) CASE: 130×85×90 mm

N.W: 0,8kg

RAMA: Fe360B steel,

OPERATING:ABS plastic

HEATER: anodized aluminum block

PACKAGE SIZE: 220×170×110 mm

SUPPLY VOLTAGE: 10-14V

NUMBER OF PHASE: 1

POWER FREQUENCY: 50Hz

POWER : 46W

LEVEL OF SECURITY:PE

CABLE LENGTH:L=1200mm (2x0.75mm2 + ground wire),

L2=1400mm

MAXIMUM CURR0ENT IN THE HEATING PHASE: 4.5A

AVERAGE CURRENT INA24H HEATING CYCLE: 2A

STANDBY CURRENT:0,1A

CONSUMPTION MAXIMUM: 60W

STANDBY POWER CONSUMPTION: 1.2W

OPERATING TEMPERATURE: 56°C

TEMPERATURE STABILIZATIONACCURACY:+/-1°C

T
