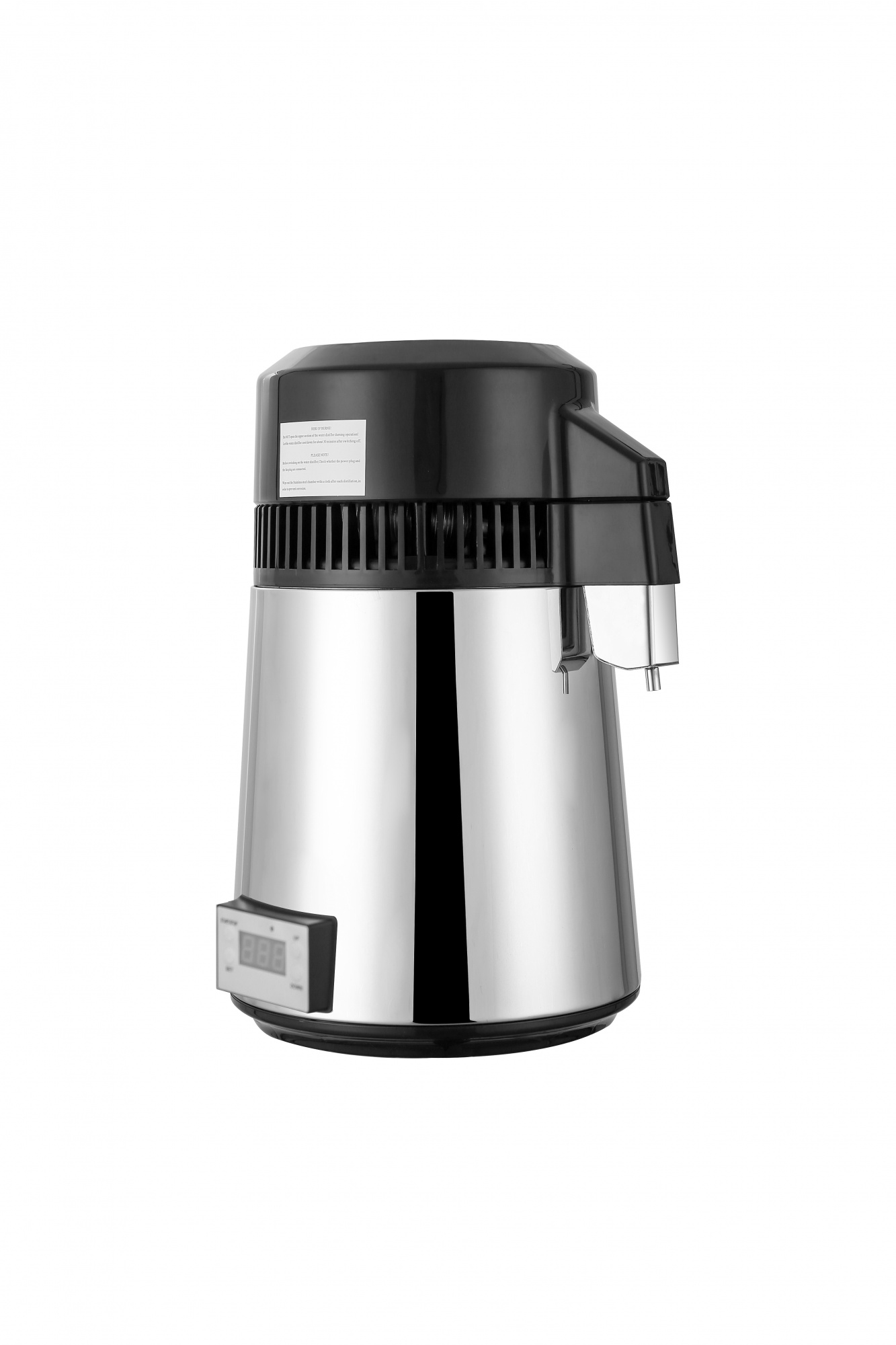

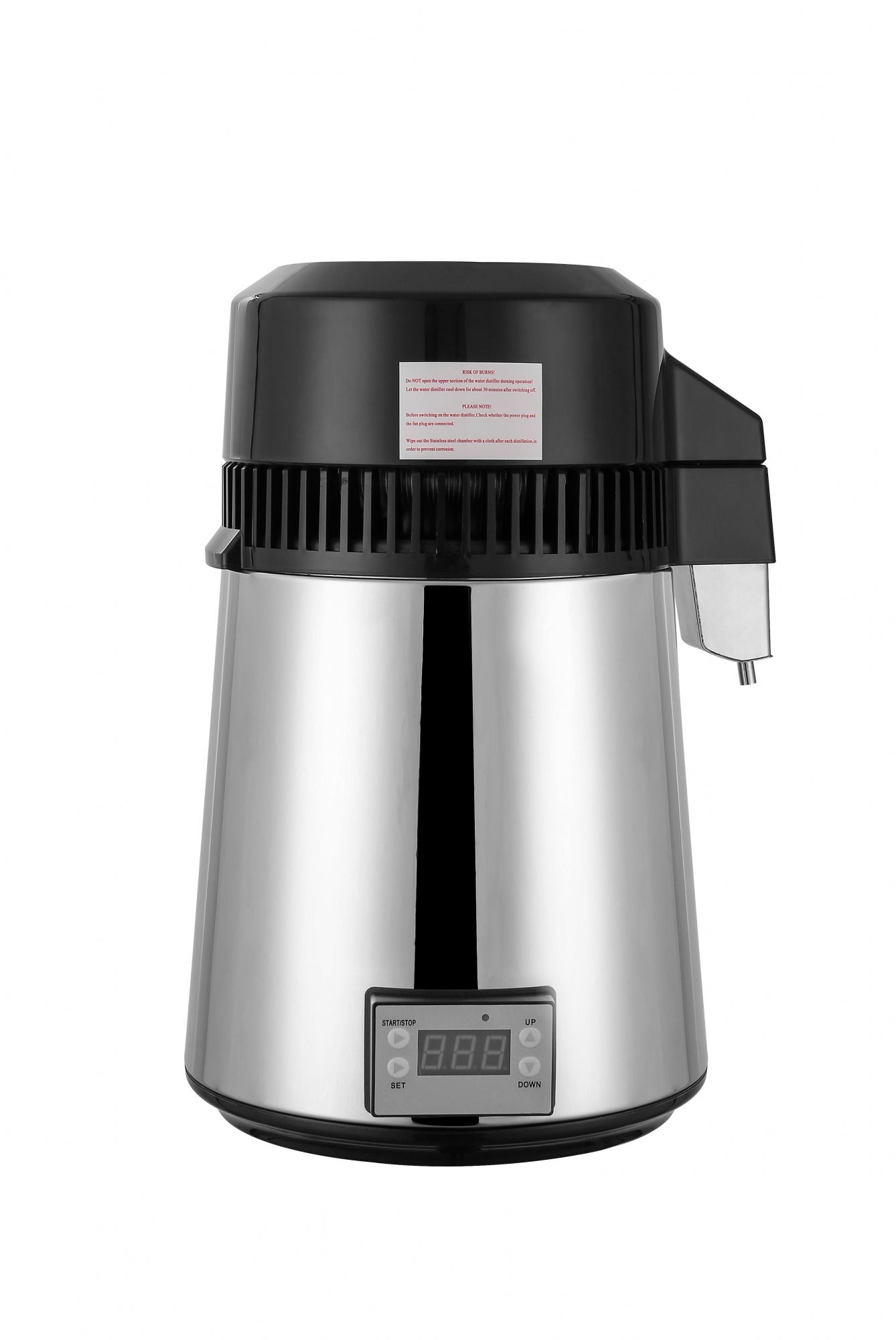

TY035

Specification :

Voltage/ Power(Customizable)：120V/230V 780W

Chamber inner dimensions：180×200 mm

Unit dimensions(mm)：235×250×380mm/235×250×385mm

Pack size (mm)：460×265×310 (1 unit) 560×475×665 (4 units)

Distiller output：4L

Net weight/Gross weight：6/5.5KG

WATER DISTILLER

PRODUCT INTRODUCTION

Advantages：

1. we have ON/OFF switch.

2. We have Fuse holder outisde of machine body with 2×10A fuse.

4.we use Stainless steel nozzle instead old plastic nozzle,and welded by laser ,without scars.

5.we have strong foam 100% cover the machine for protect and avoiding damges of transportation even one pcs

3. we have 780W 120Vor 780W 230V electric heater+electric motor=800W total, be sure the machine can finish

one gallon water within 4 hours.

shipping.

6.we have an good polishing tank like mirror.easy clean.

7.we use Alunium Fan instead of plastic for a long lifespan.

8.Detachable heating plate for easy after-sales service.

DESCRIPTION:

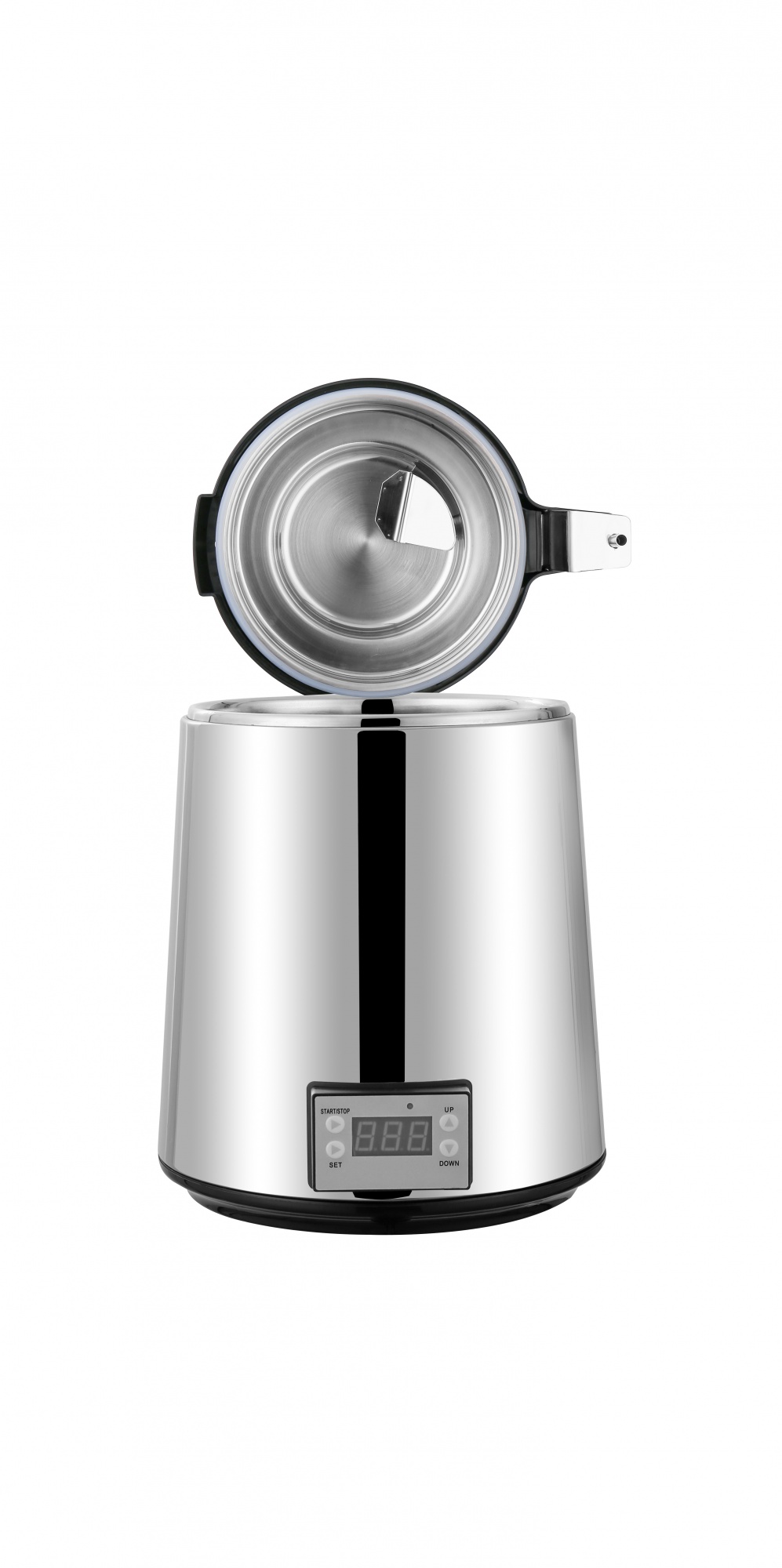

1.The inner chamber are made of high grade 304 stainless steel,and there is a steel stamp on it to prove, the steel label can be marked on only when the material

and thickness are all guaranteed, and the water faucet is made of the same material to avoid any pollution.

2.The plastic bottom cover and the internal connecting wires are made of flame-retardant materials, which can effectively avoid burning.

3.The temperature protectors in key parts are imported from big brands, with stable performance and durability.

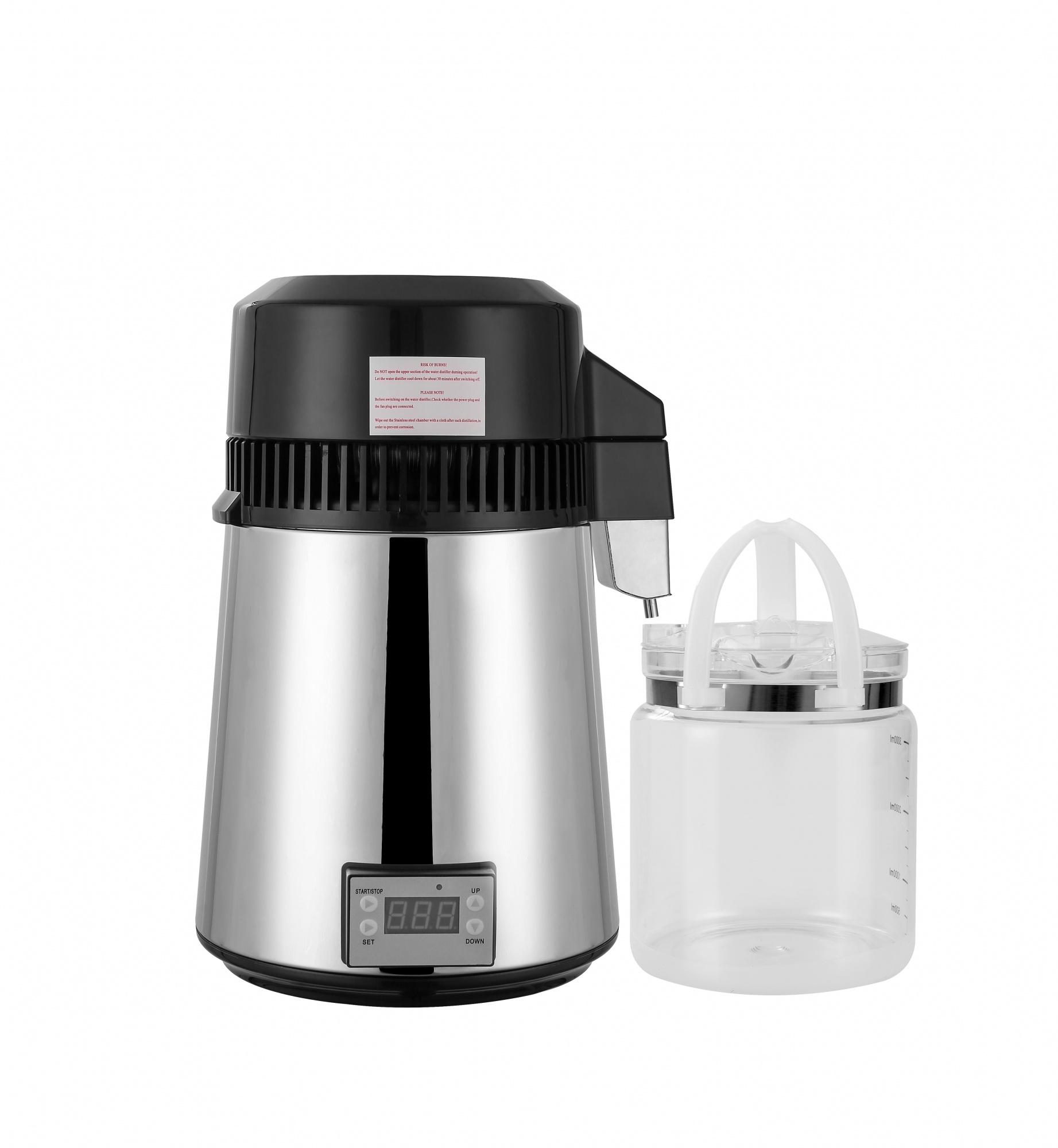

4.To keep high purity of distiller water, the first glass kettle was developed for medical use.

5.To prolong the use life,the cooling fan was made of aluminum.

6.CE certificated high quality to guarantee 12 months warranty for you.

MULTIFUNCTIONAL STILL

The newest model multi-function distiller can not only distill water, but also distill pure dew, extract essential oil, alcohol, and make Chinese Spirits/Baijiu/ brandy.

Model TY035

Switch on the machine, then,

Press the "SET" button once to see the Upper Limit Temperature(ULT) of the machine.

Press the "SET" button twice and you will set the Temperature Return Difference value(TRD

value) of the machine. (TRD=0. ULT=106c can make distiller water.)

Press the "SET" button three times to set the working time of the machine, from 1-10H.
