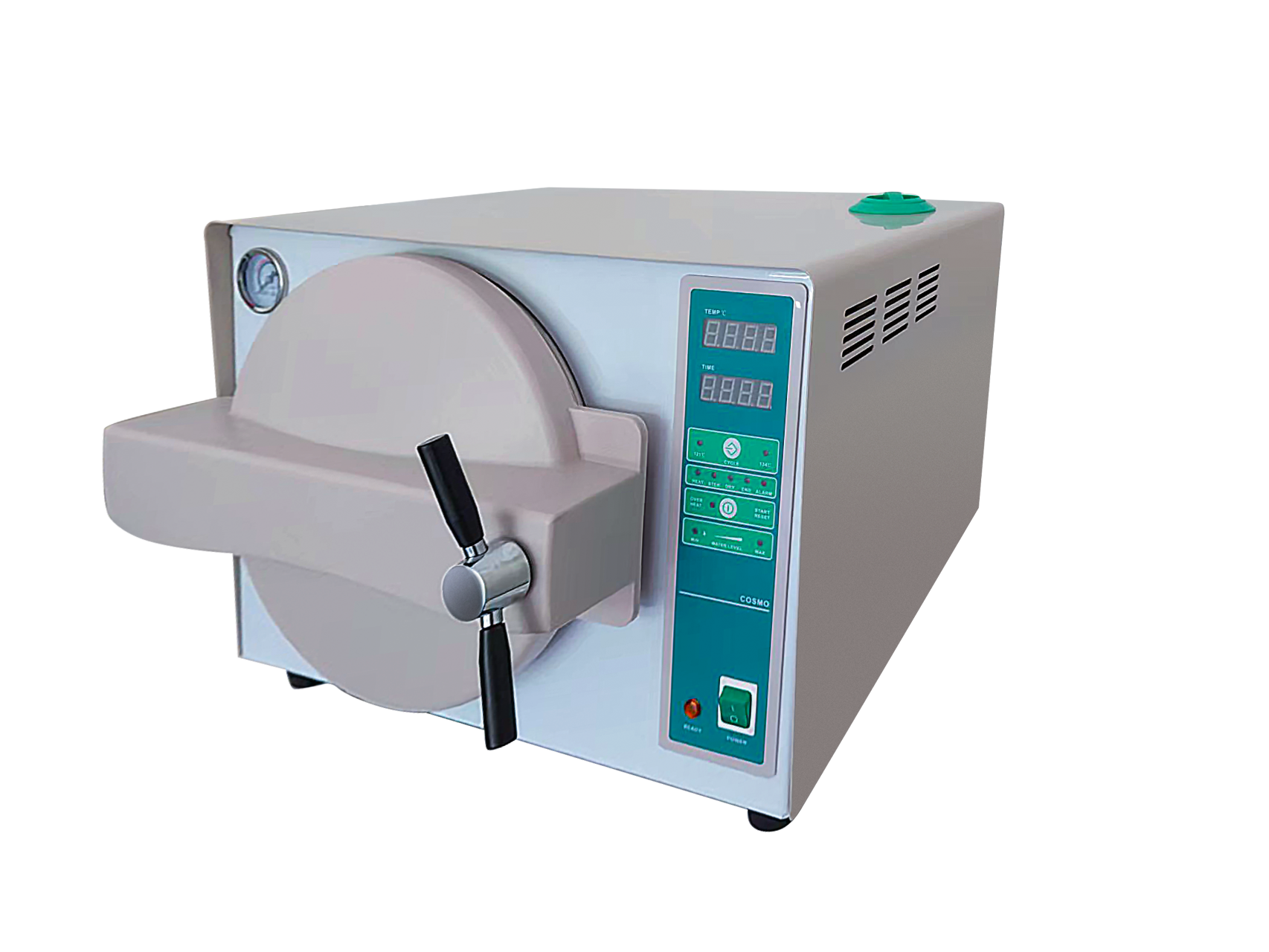

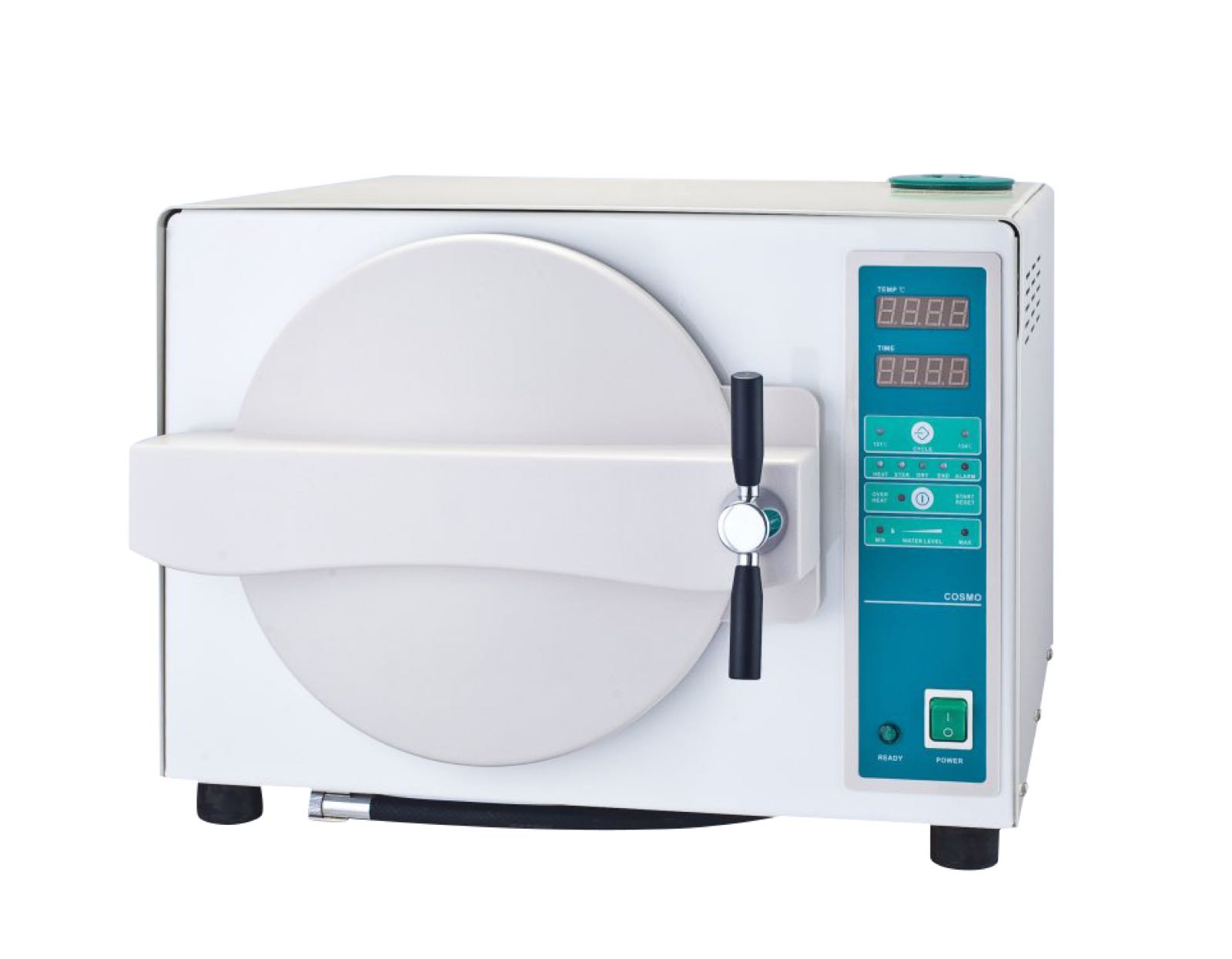

TY-210 AUTOCLAVE

Specification

Model : TY- 205

Voltage/Power : 110-240V/1800W

Chamber capacity : Ф250*D360 mm

Inside capacity :18 Liter

Outside size(L*W*H)CM : 60*39*36

Packing size (L*W*H)CM :61*54.5*42.5

N.W : 30KGS

G.W :31KGS

Standard equipment

Sterilize temperature :122℃ & 134℃

Sterilize pressure(M pa) : 0.12Mpa & 0.23Mpa

Sterilize time: 25 min & 6 min

Dry time :Immobile range is 40 min

Power consubtion :1100W

Material quality :stainless steel #304.boiler chamber surface with burnish

Surface deal with :The machine foundation and the shell use high temperature baking varnish processing

Electric current-110V :10A

Electric current-220V :5A

Auto supply water system :Yes

Safely equipment:*Pressure adjustment:adjust the inter pressure.If over standard value automatic vent. *Avoid overheat protect device:When inter temperature overheat,power break electric current automatically.

Automatic vent water :have the device

Store water box (2000ml) : have the device

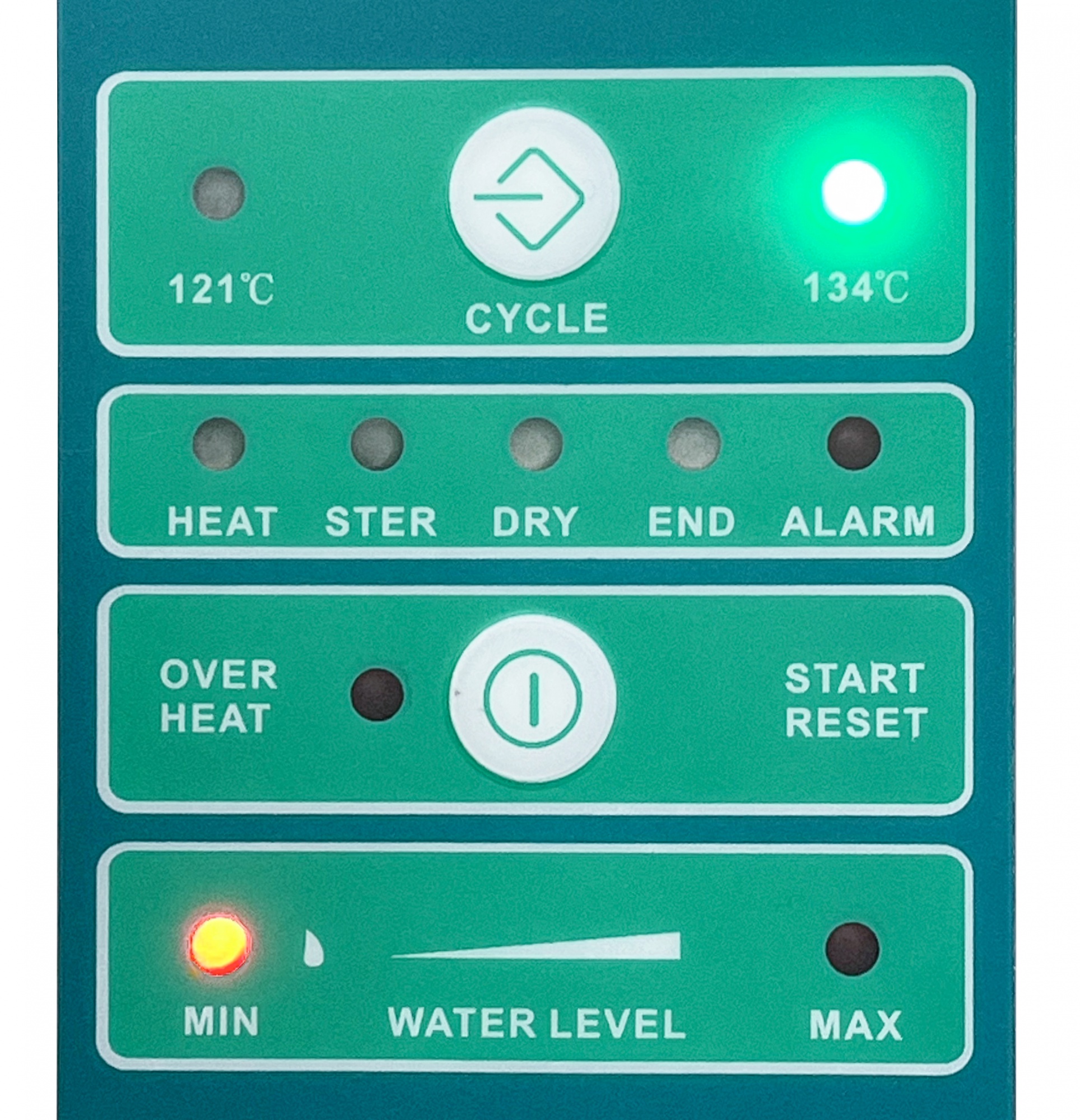

Led lights indicate the level of the water tank :have the device

Disinfection complete action :Automatic discharge of water and steam
