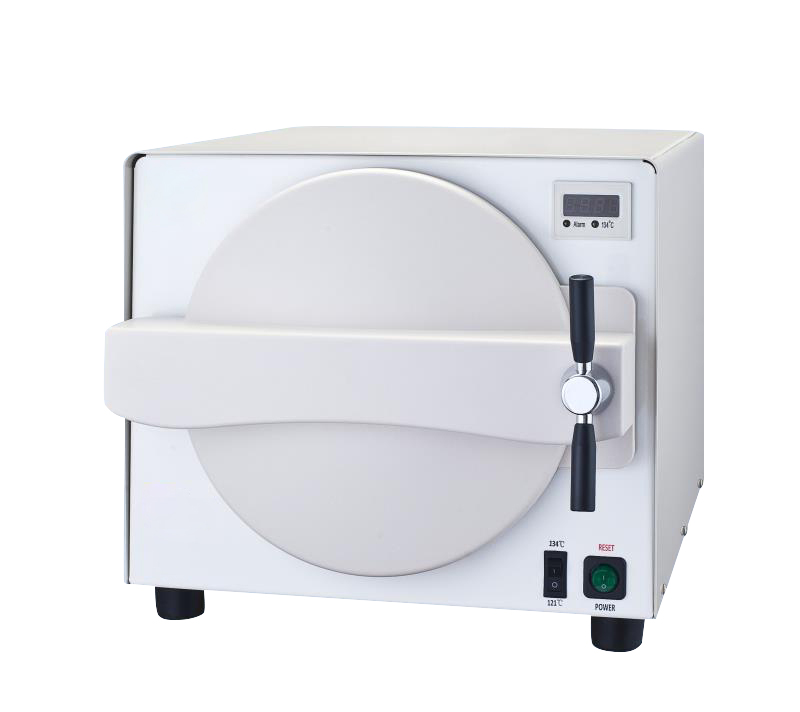

TY-209 AUTOCLAVE

Specification

Model : TY- 209

Voltage/Power : 110-240V/1800W

Chamber capacity : Ф250*D360 mm

Inside capacity :18 Liter

Outside size(L*W*H)CM : 60*39*36

Packing size (L*W*H)CM :63*46*41

N.W : 25KGS

G.W :26KGS

Standard equipment

Sterilize temperature :122℃ & 134℃

Sterilize pressure(M pa) : 0.12Mpa & 0.22Mpa

Sterilize time: 25 min & 6 min

Dry time :No dry function

Power consubtion :1000W

Material quality :stainless steel #304.boiler chamber surface with burnish

Surface deal with :The machine foundation and the shell use high temperature baking varnish processing

Electric current-110V :8A

Electric current-220V :4A

Auto supply water system :Manual give the water

Safely equipment:*Pressure adjustment:adjust the inter pressure.If over standard value automatic vent. *Avoid overheat protect device:When inter temperature overheat,power break electric current automatically.

Automatic vent water :No

Store water box (2000ml) : No

Led lights indicate the level of the water tank : No

Disinfection complete action :Automatic discharge of water and steam
